QUADRAQ Board
Panel configurator
Pick machine type, supply, enclosure size and layout, control level, connectors and operator interface. Out comes the part number and the bill of materials.
Configure the panelPanels, wiring and on-board software
You should not redraw the panel for every machine.
QUADRAQ is a platform for workshops that upfit and revamp vehicles and industrial machines: panel, wiring, documentation and controller software, together or one at a time. One wiring schema, three controller sizes sharing the same pinout, connectors labelled the same way every time.
Configurators
Configure online, no sign-up.
Three free tools. Your configuration is saved to a file and picked up again whenever you want.
QUADRAQ Line
Installation configurator
Place the panel on the drawing of the machine, draw the runs towards each zone and declare destinations and cable lengths. Out comes the layout and the cable list.
Design the installationBoard shows no prices on screen: the quote is sent to you privately after registration. Cable lengths in Line are the ones you declare, not measured off the drawing. The I/O list from Logic is what the software is written from, not the software itself.
Why
Every bespoke build is a one-off you have to support for ten years.
The schema gets redrawn every time
Same job, different numbering, different terminal strip. Design time comes back in full on every order and never pays for itself.
Support depends on who wired it
Three years later, with the truck stuck on site, the technician answering the phone is not the one who built the panel.
Spare parts are rebuilt, not ordered
One discontinued component forces you to redraw part of the schema instead of picking a stock code.
and the one that decides whether the machine works.
The platform
Four decisions taken once, valid on every machine.
-
One schema
One wiring schema for every size
The three controller levels — small, medium, large — belong to the same family and share the same pinout. Power and I/O count change, the wiring does not: learn one panel and you have learned them all.
-
Two connectors
Large for the zone, M12 for the node
The large 16-pin connector carries power and the emergency chain to one zone of the machine. The 5-pin M12 serves simple nodes on the CAN bus. Nothing else to choose, nothing else to get wrong on assembly.
-
Fixed labelling
Wires always carry the same number
Permanent branch, ignition branch, zone potentials: numbering is defined at platform level and does not change from one machine to the next. You put the probe where you already know it goes.
-
Three networks
Chassis, machine and accessories kept apart
The dialogue with the vehicle chassis, the internal machine network and the on-board devices — display, modem, switch — sit on three separate buses. A fault on one branch does not take the others down.
The ranges
Four machines, the same electrical base.
Between one range and the next, in practice only the cab control panel changes. Everything else — schema, labelling, connectors — stays identical. And when a machine fits none of the four, we start from the same blocks anyway.

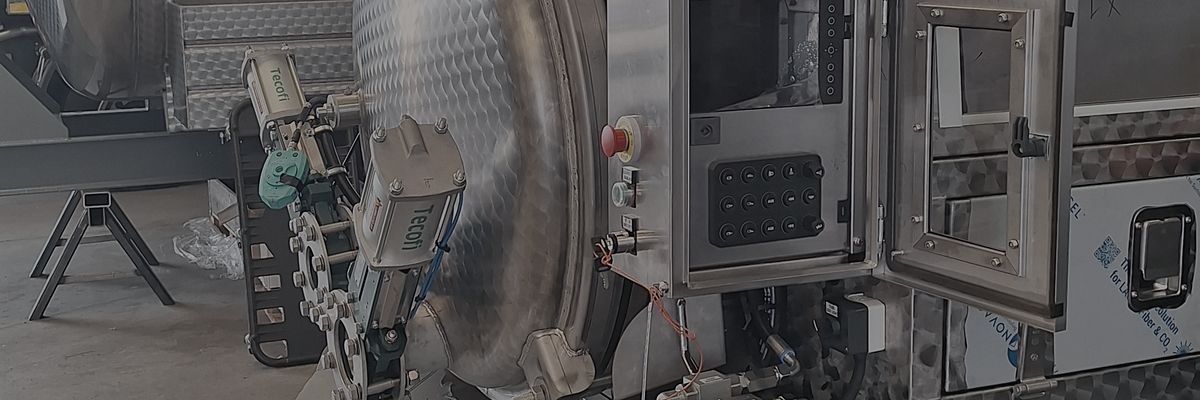

Q-VAC
Vacuum and jetting
Vacuum trucks and jetters: vacuum pump, high pressure, level management and tank handling.
Reference schema
Q-COMP
Compaction
Refuse compactors: compaction cycle, bin lifter, platform safety devices and rear camera.
Validated schema
Q-DRILL
Drilling
Drilling rigs: rotation, pull and push, rod handling and outriggers.
Being defined

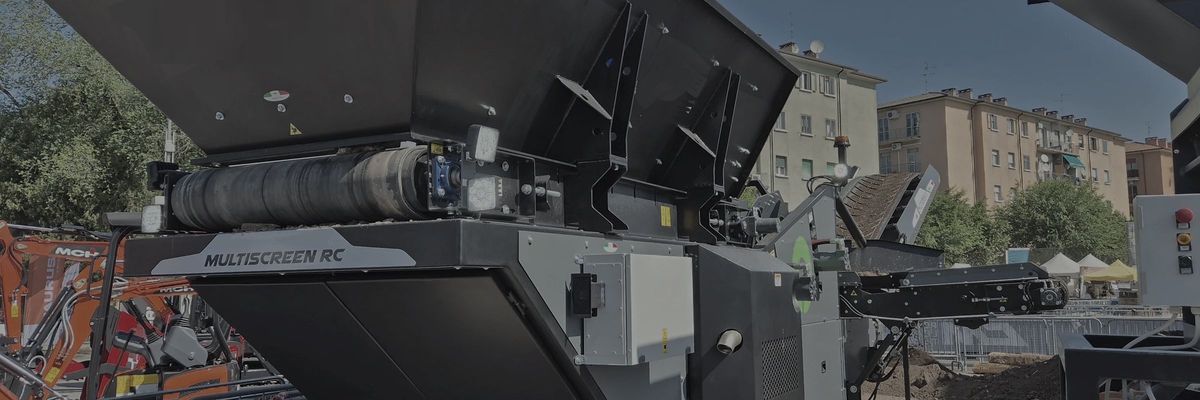

Q-CRUSH
Crushing
Mobile crushers and screeners: crushing group, conveyors, feeder and start-up sequences.
Being defined
Q-ENG
Engineering to order
Machines outside the four ranges: functional analysis, schema, bill of materials and software, built from the same platform blocks.
On request
How to buy
A finished panel, or just the components.
QE
Assembled panel
Enclosure, components, internal wiring and testing. It arrives ready to mount and to plug into the connectors.
- Enclosure in vertical or horizontal layout
- Wired, labelled and bench tested
- Schema and bill of materials for that specific panel
KIT
Components only
For workshops that build their own enclosures or have to fit a space they already have. Same bill of materials, same schema, assembly on your side.
- Controller, connectors and control components
- Enclosure supplied by the customer
- Schema and bill of materials for the kit
Every configuration produces a unique part number: controller size, range, enclosure layout, on-board options. That code is what you order the second time, and the third.
Supply
Four things, or just one of them.
Take the lot, or take one part: a workshop that builds its own enclosures can buy the software alone, and the other way round.
01
Panel
Enclosure, components, internal wiring, testing
02
Wiring
Connectors, zone cables, labelling, cable list
03
Software
Controller program and display pages
04
Documentation
Schematics, bills of materials, operating manual
